R 965.50

Shipping calculated at checkout.

People are currently viewing this
Selling quickly! people have this item in their carts
Select The Options Above
Description
1. Standard 40PIN GPIO extension header, supports direct attaching to Jetson Nano

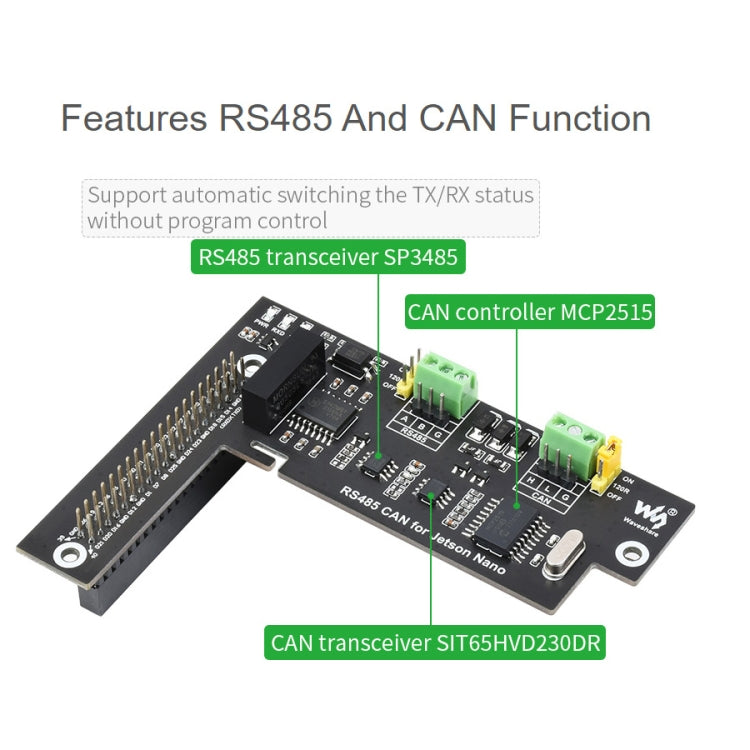

2. Onboard CAN controller MCP2515 via SPI interface, matching with SIT65HVD230DR transceiver
3. Features RS485 function, controlled via UART, half-duplex communication, supports automatic TX/RX control without programming, onboard transceiver SP3485

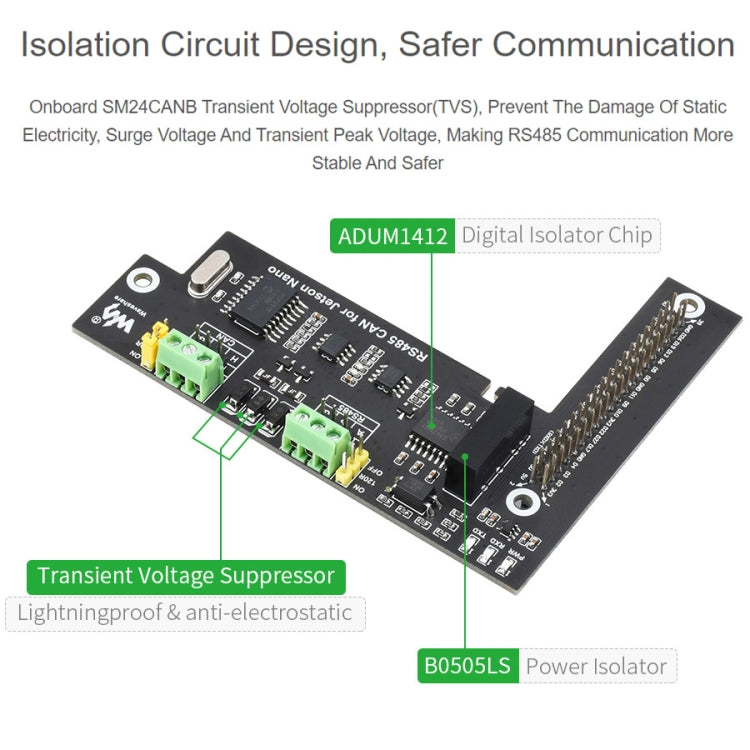

4. Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit for RS485 transceiving, light-ningproof & anti-electrostatic
5. Onboard digital isolation chip, safer signal isolation communication and better stability and anti-interference
6. Reserved control pins, allows to work with other control boards
7. Comes with development resources and manual (examples in python)

Specifications

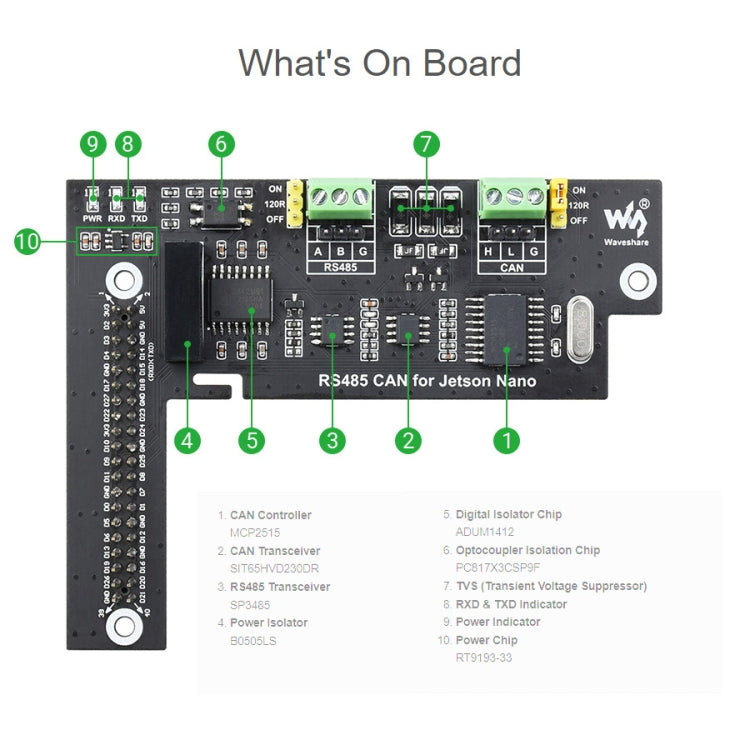

1. CAN Controller: MCP2515
2. CAN transceiver: SIT65HVD230DR
3. RS485 transceiver: SP3485
4. Working voltage: 3.3V
5. Mounting hole size: 3.0mm

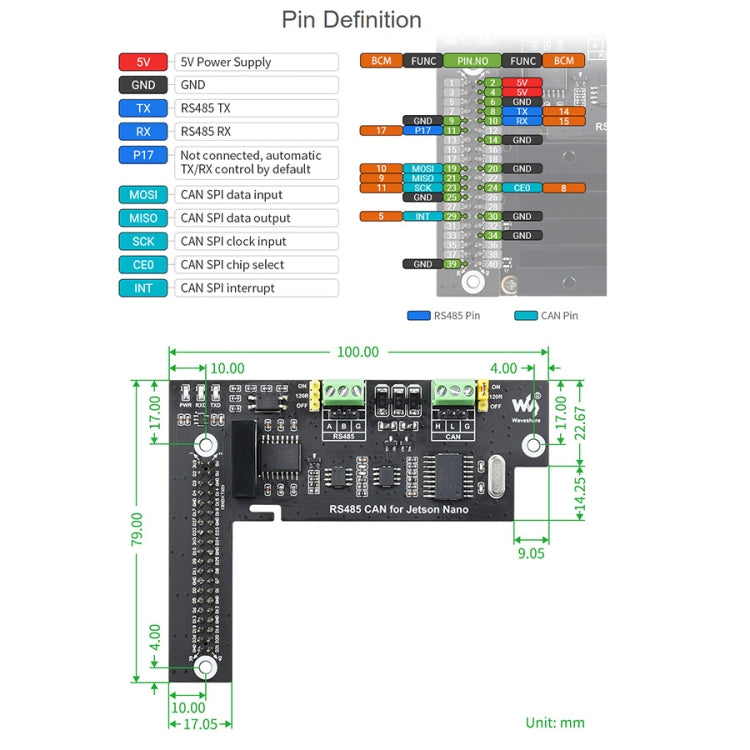

6. Dimensions: 100 x 79 mm

Package List
1. RS485 CAN for Jetson Nano x1
2. Screws pack x1


Specification:
Package Weight
One Package Weight 0.05kgs / 0.12lb
One Package Size 12cm * 7cm * 2cm / 4.72inch * 2.76inch * 0.79inch
Qty per Carton 200
Carton Weight 11.00kgs / 24.25lb
Carton Size 52cm * 32cm * 32cm / 20.47inch * 12.6inch * 12.6inch
Loading Container 20GP: 500 cartons * 200 pcs = 100000 pcs
40HQ: 1162 cartons * 200 pcs = 232400 pcs
