Description
Features
By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

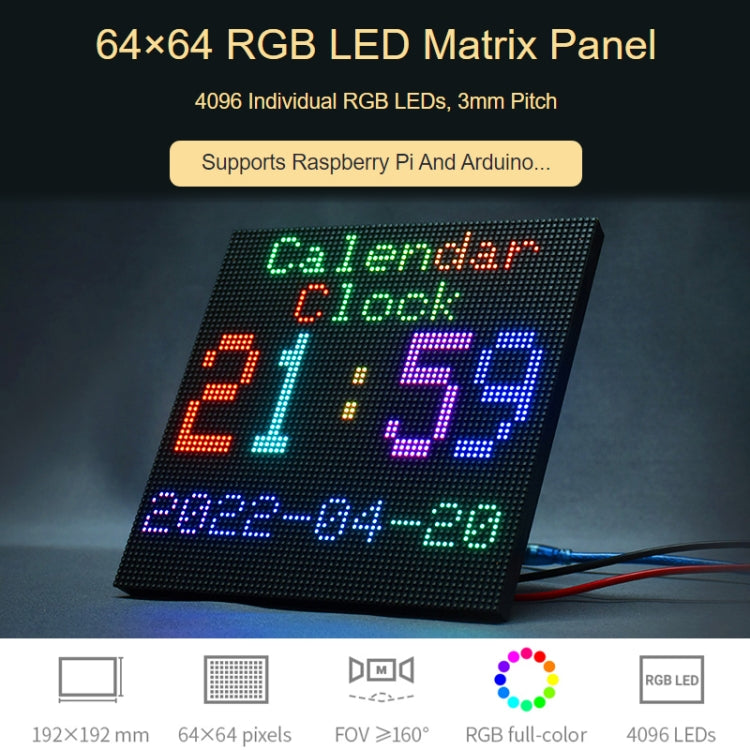

1. 4096 individual RGB LEDs, full-color display, adjustable brightness
2. 64 x 64 pixels, 3mm pitch, allows displaying text, colorful image, or animation

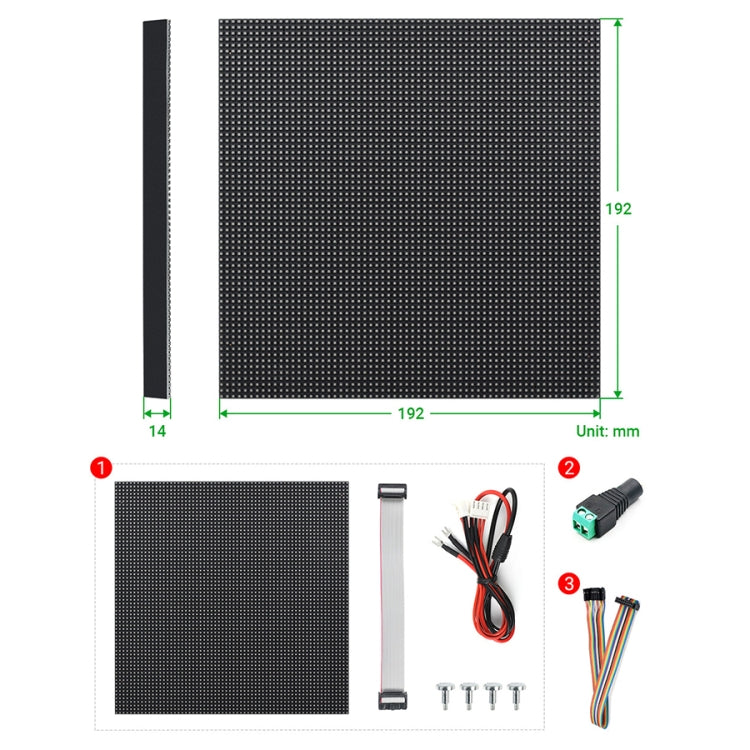

3. 192 x 192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

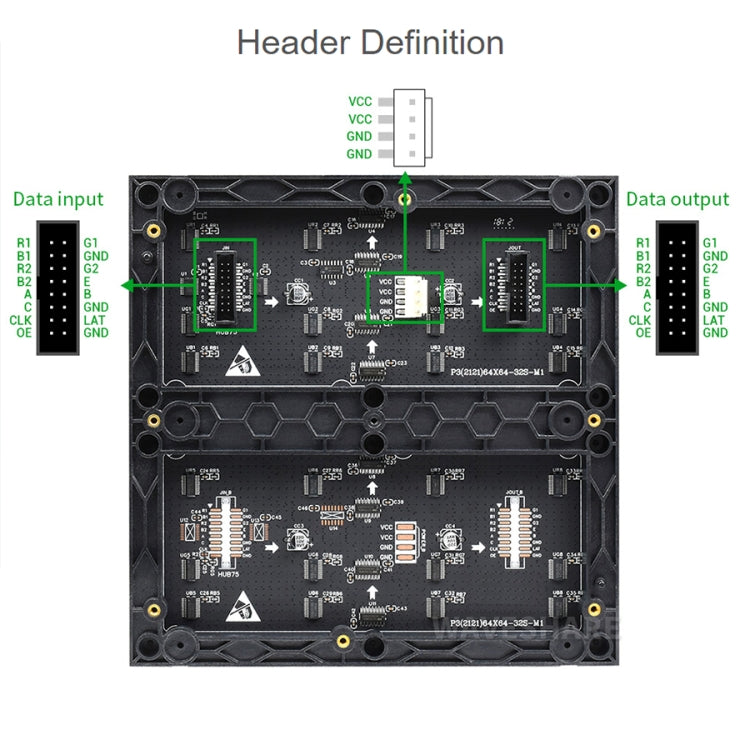

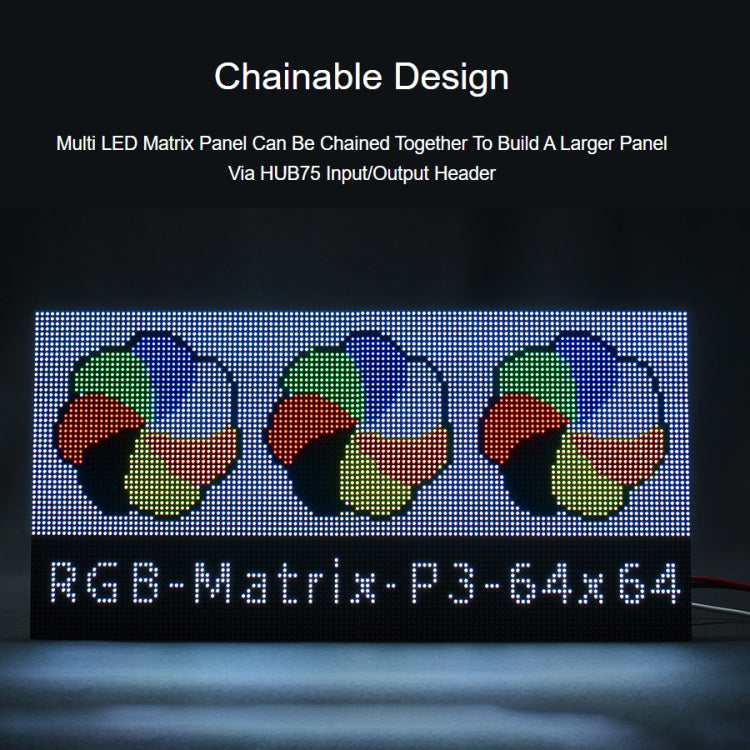

4. Onboard two HUB75 header, one for controller data input, one for output, chain support
5. Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on

Specifications
1. Dimensions: 192mm x 192mm
2. Pixels: 64 x 64=4096 dots
3. Spacing: 3mm
4. Pixel form: 1R1G1B
5. Viewing angle: greater than or equal to 160 degrees
6. Control Type: Synchronous
7. Driving: 1/32 scan
8. Connector: HUB75
9. Power supply: 5V / 4A (VH4 connector input)
10. Power: less than or equal to 20W

Package List
1. RGB-Matrix-P3-64x64 LED matrix and accessories x 1
2. Power supply terminal adapter x 1
3. 16P wire about 30cm x 1


Specification:
Package Weight
One Package Weight 0.31kgs / 0.68lb
One Package Size 20cm * 15cm * 4cm / 7.87inch * 5.91inch * 1.57inch
Qty per Carton 40
Carton Weight 13.00kgs / 28.66lb
Carton Size 42cm * 32cm * 35cm / 16.54inch * 12.6inch * 13.78inch
Loading Container 20GP: 566 cartons * 40 pcs = 22640 pcs
40HQ: 1316 cartons * 40 pcs = 52640 pcs
