R 833.02

Shipping calculated at checkout.

People are currently viewing this
Selling quickly! people have this item in their carts
Option: 23707
Select The Options Above
Description

1. Pixel: 64 x 32=2048 dots
2. Pitch: 2.5mm
3. Pixel format: 1R1G1B
4. Viewing angle: greater than 140 degrees
5. Control mode: synchronous
6. Drive: 1/16 scan
7. Connector: HUB75
8. Power supply: V / 2.5A (VH4 connector input)
9. Power: within 12W
10. Size: 16 x 8cm

Features:

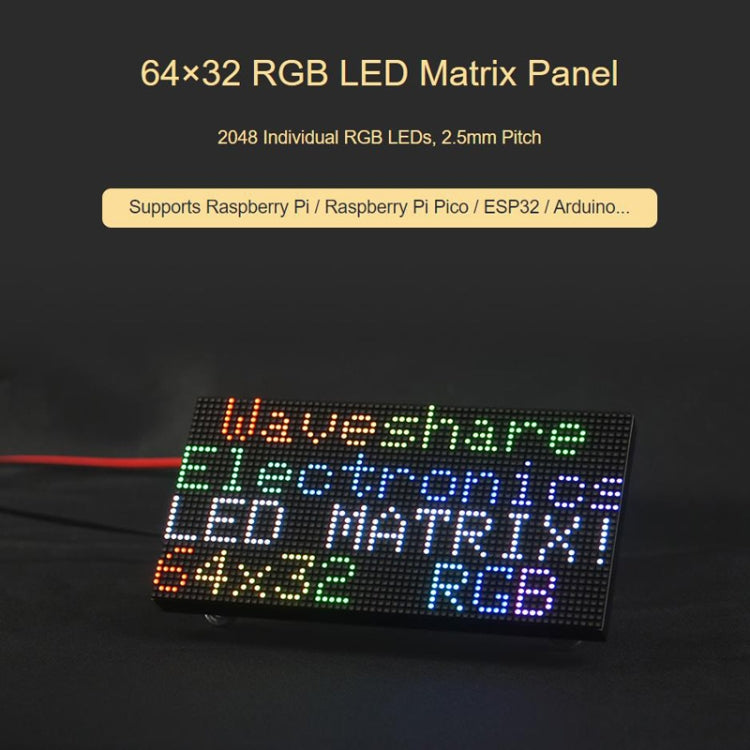

1. 2048 independent RGB led, full color display, adjustable brightness
2. 64x32 pixels, 2.5mm pitch, allows displaying text, color images or animations
3. 160x80mm size, moderate size, suitable for DIY desktop display or wall mount display

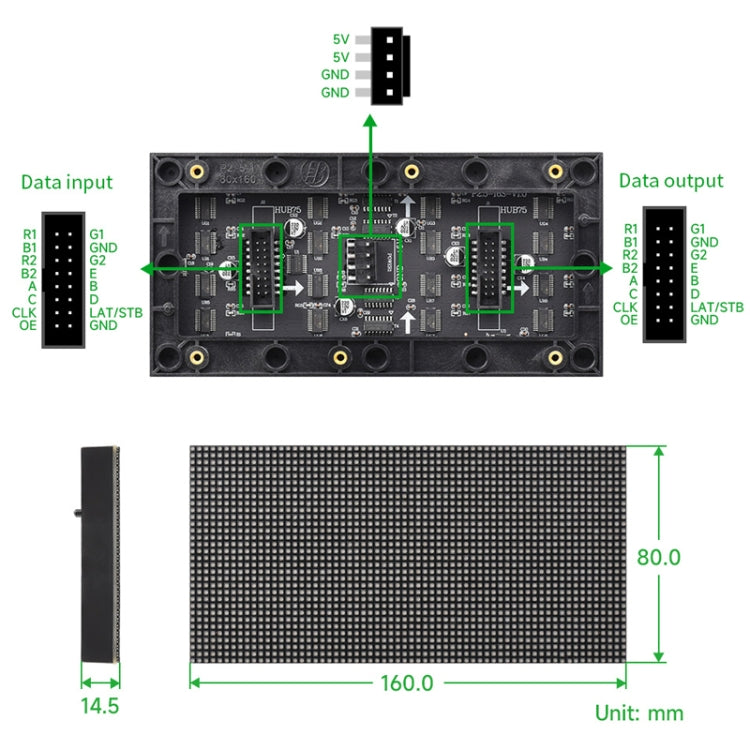

4. Two HUB75 headers on board, 1 for controller data input, 1 output, chain support
5. Provide open source development resources (for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino, etc.)


Specification:
Package Weight
One Package Weight 0.40kgs / 0.89lb
One Package Size 20cm * 10cm * 2cm / 7.87inch * 3.94inch * 0.79inch
Qty per Carton 74
Carton Weight 30.00kgs / 66.14lb
Carton Size 50cm * 50cm * 60cm / 19.69inch * 19.69inch * 23.62inch
Loading Container 20GP: 177 cartons * 74 pcs = 13098 pcs
40HQ: 412 cartons * 74 pcs = 30488 pcs
