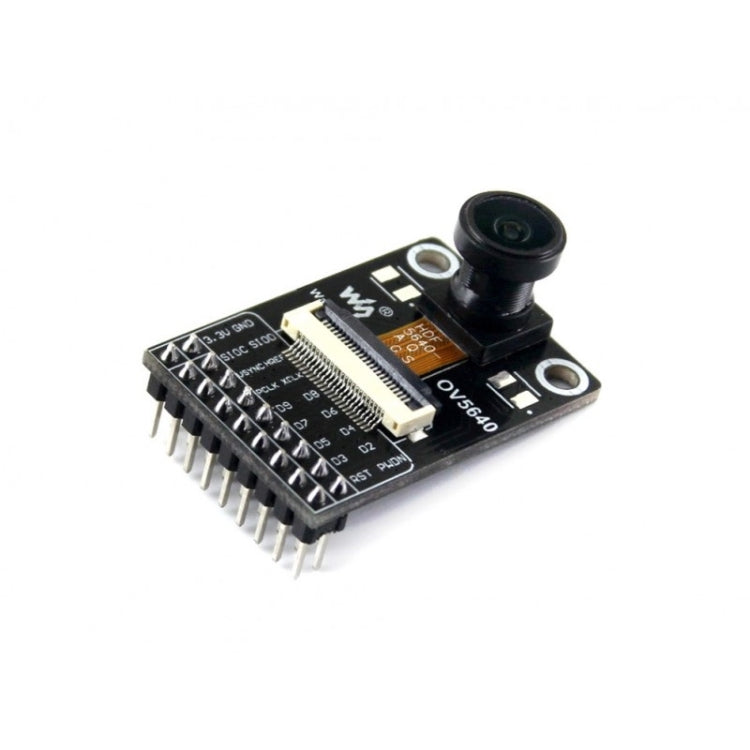

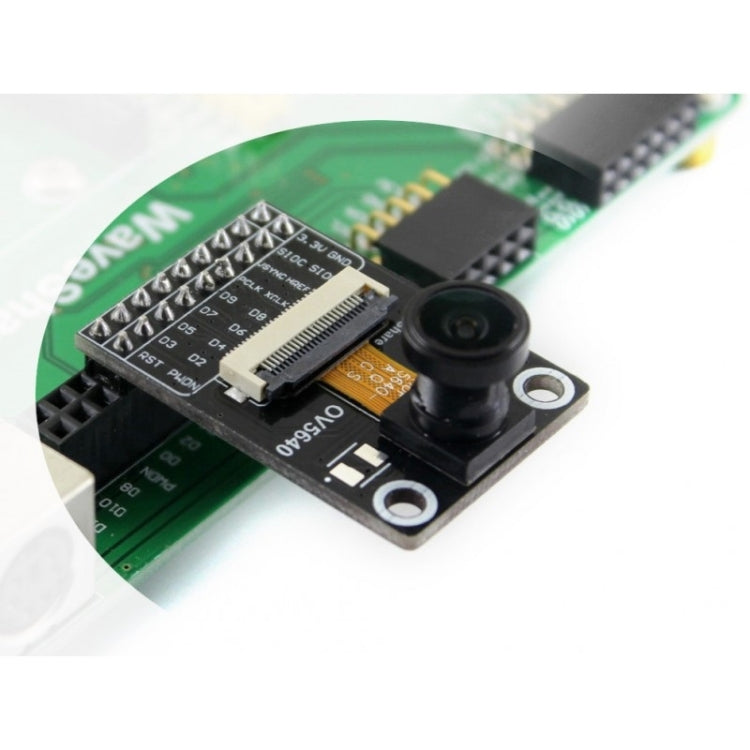

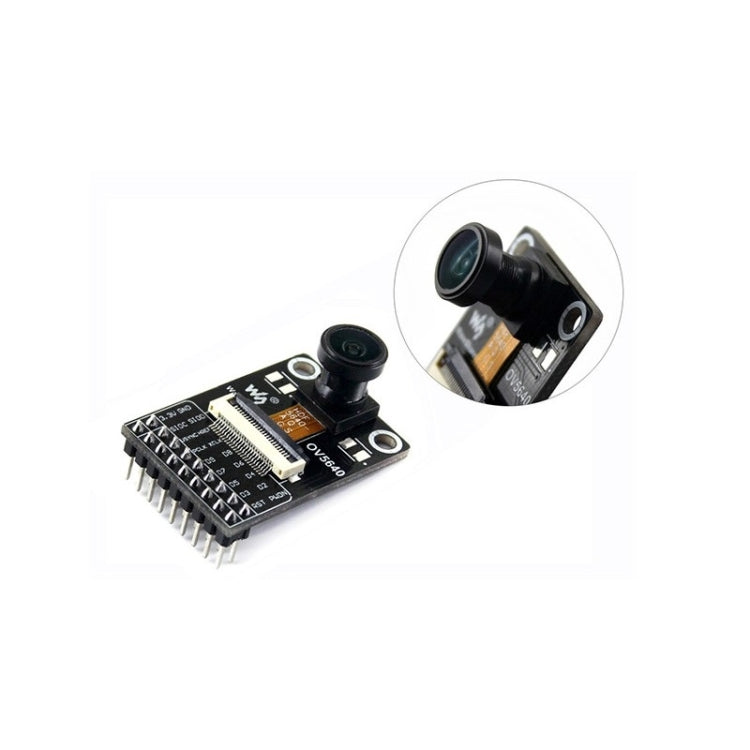

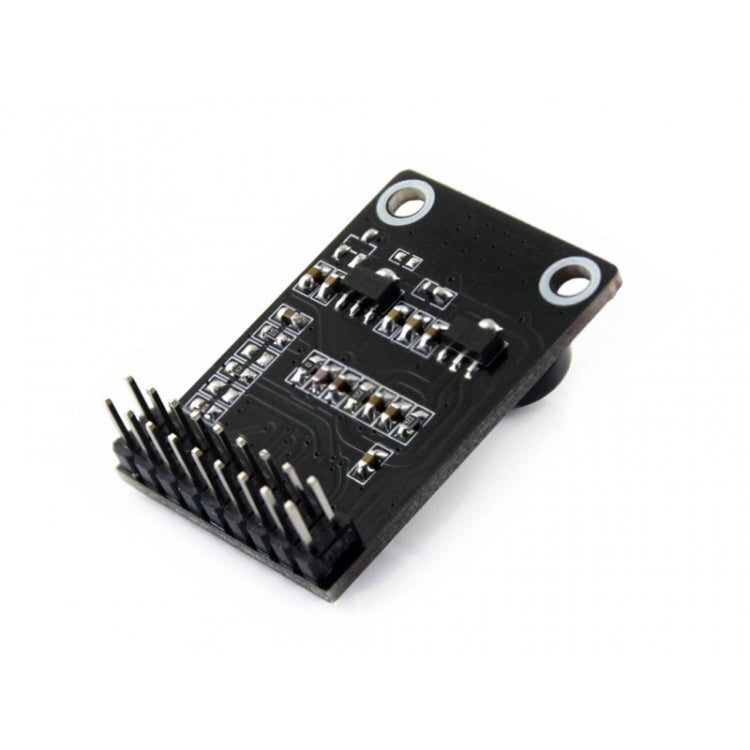

• Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module
Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module

Waveshare OV5640 Camera Board (B), 5 Megapixel (2592x1944), Fisheye Lens Camera Module

R 921.25

Shipping calculated at checkout.

People are currently viewing this
Selling quickly! people have this item in their carts
Select The Options Above
Description
Features
1. Pixels: 5 megapixel
2. Resolution: 2592x1944
3. Sensor: OV5640
- 1.4um x 1.4um pixel with OmniBSI technology, high sensitivity, low crosstalk, low noise
- Automatic image control functions: AEC, AWB, ABF, ABLC, etc.
- Image quality controls: color saturation, hue, gamma, sharpness, lens correction, etc.
- Supports image scaling, panning, windowing, etc.
4. Lens:
- CCD size: 1/4inch
- Aperture (F): 2.5
- Focal Length: 2.0mm
- Diagonal: 170 degree (fisheye)
5. Output Formats:
- YUV(422/420)/YCbCr422
- RGB565/555/444
- CCIR656
- RAW RGB
- Compressed Data
6. Operating Voltage: 3.3V
7. Control Interface: SCCB (I2C compatible)
8. Data Interface: DVP 8-bit
9. Dimension: 35.70mm x 23.90mm


Specification:
Package Weight
One Package Weight 0.01kgs / 0.03lb
One Package Size 6cm * 5cm * 1cm / 2.36inch * 1.97inch * 0.39inch
Qty per Carton 3200
Carton Weight 15.00kgs / 33.07lb
Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
Loading Container 20GP: 277 cartons * 3200 pcs = 886400 pcs
40HQ: 644 cartons * 3200 pcs = 2060800 pcs
