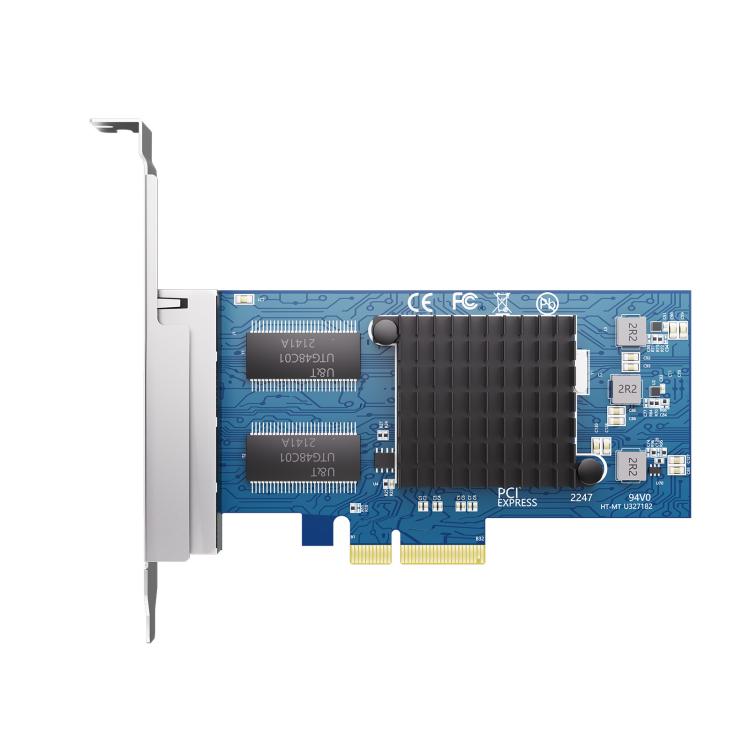

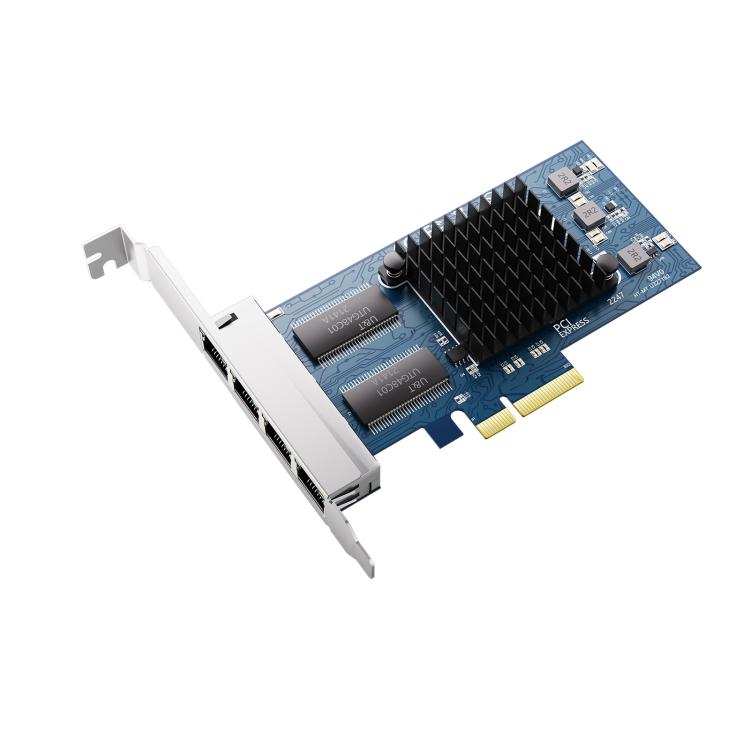

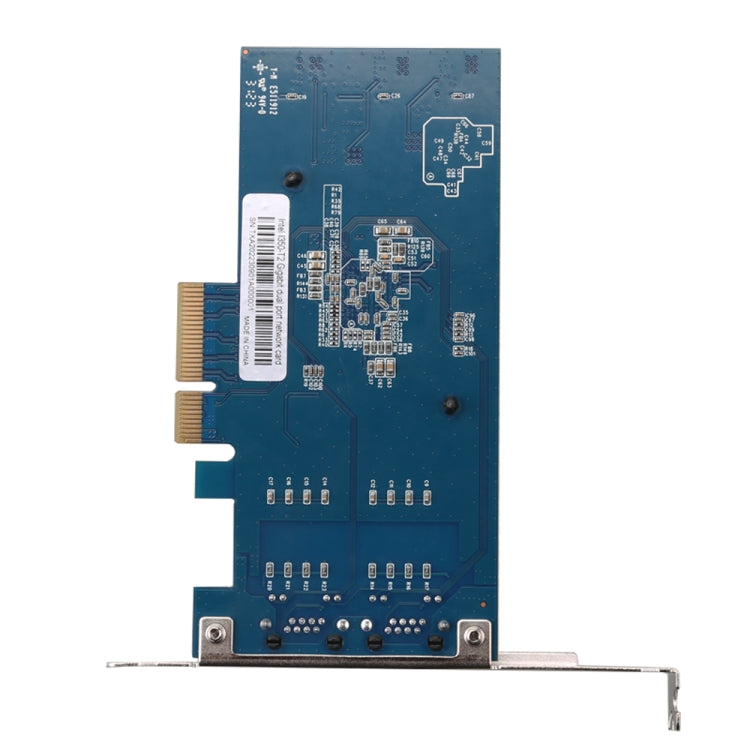

Intel I350_PCIe 4x Server 4Port Lan Card, 4x Server

1. Chipset: Intel I350 Ethernet controller
2. Port number: 4xRJ45
3. Standard: IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab
4. Data rate: 10/100/1000Mbps
5. Interface: PCI express 4x
6. LED indicator: 8 LEDs 10/100/1000Mb (link/action)
7. Dimensions: 130x68.5x17mm
8. Supported operating systems: DOS, Novell ODI Windows XP 32-bit (64-bit), Windows Server 2003 32-bit (64-bit), Windows Vista 32-bit (64-bit), Windows7 32-bit (64.bit)
Windows 8 32-bit (64-bit), Windows 8.1 32-bit (64-bit) Windows Server 2008 32-bit (64-bit), Windows Server 2008 R2 32-bit (64.bit) and Windows Server 2012
Windows Server 2012 R2 Linux 2.4 series kernel, 2.6.x, 3.x FreeBSD 7.x or most FreeBSD, UnixWare/Open Unix 8 Sun Solaris x86, VMware, Xen4
9. Environment: Operating temperature: 0℃-55℃, relative humidity: 10%-90% (non-condensing), storage temperature: -0℃-80℃, relative temperature: 5%-90% (non-condensing)
10. Other features: Halogen-free dual-port Gigabit Ethernet adapter with fiber interface option Innovative power management features, including Energy Efficient Ethernet (EEE) and DMA aggregation to improve efficiency and reduce power consumption Flexible I/O virtualization, enabling port partitioning and up to 32 quality of service (QoS) virtual ports
Scalable iSCSI performance provides cost-effective SAN connectivity, supports PCI Expressx2.1 generation 5GT/s high-performance bridgeless design, supports PCI ExpressxV2.1 (5 GT/s), low profile and standard height full, automatic crossover detection function (MDI/MDI-X), IEEE 1588 protocol and 802.1AS implementation
11. Chipset Description: Intel Ethernet Controller I350 is a single, compact, low-power component that supports quad-port as well as dual-port Gigabit Ethernet designs. The device provides four fully integrated Gigabit Ethernet media, access control (MAC), physical layer (PHY) ports and four SGMII/SerDes ports that can be connected to external PHYs. The I350 supports PCI Expressx (PCIe v2.1 (2.5GT/s and 5GT/s)). The device supports two-port or four-port 1000BASE-T implementations using integrated PHYs. It can be used in server system configurations such as rack-mounted or pedestal servers, in add-on NICs or LAN on motherboard (LOM) designs. Another possible system configuration is for blade servers. Here the I350 can support up to 4 SerDes ports as LOM or mezzanine cards. It can also be used in embedded applications such as switch add-in cards and network appliances.
